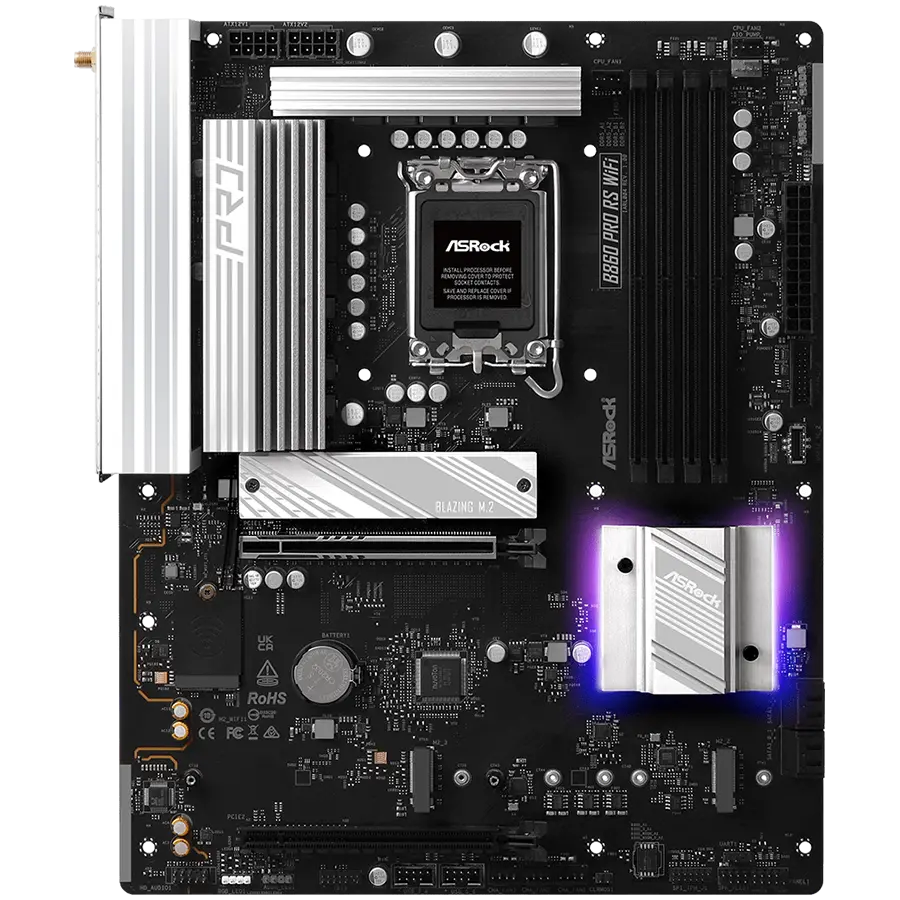

Дънна платка, ASROCK B860 PRO RS WIFI /1851

  • ASROCK
Дънна платка, ASROCK B860 PRO RS WIFI /1851
Цена
€148 20 / 289 85 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
 Добави в Количката
Удължи гаранцията си
+1 година: + 20€
+2 години: + 29€
РЕЙТИНГ
ТВОЯ РЕЙТИНГ
Мнения
Улеснено Поръчване - като въведете само телефон и име:
Съгласен съм с Общите условия
Ще Ви потърсим в рамките на работния ден. Внимание: При грешен телефонен номер, нямаме начин да се свържем с Вас.
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://asrock.com/mb/Intel/B860%20Pro%20RS%20WiFi/index.asp#Overview
Graphics
Intel® Xe LPG Graphics Architecture
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Chipset
Intel® B860
Expansion slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 4 x SATA3 6.0 Gb/s Connectors
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Memory type
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)
Supports Clocked Unbuffered DIMM (CUDIMM)
Max. capacity of system memory: 256GB
Supports Intel® Extreme Memory Profile (XMP) 3.0x

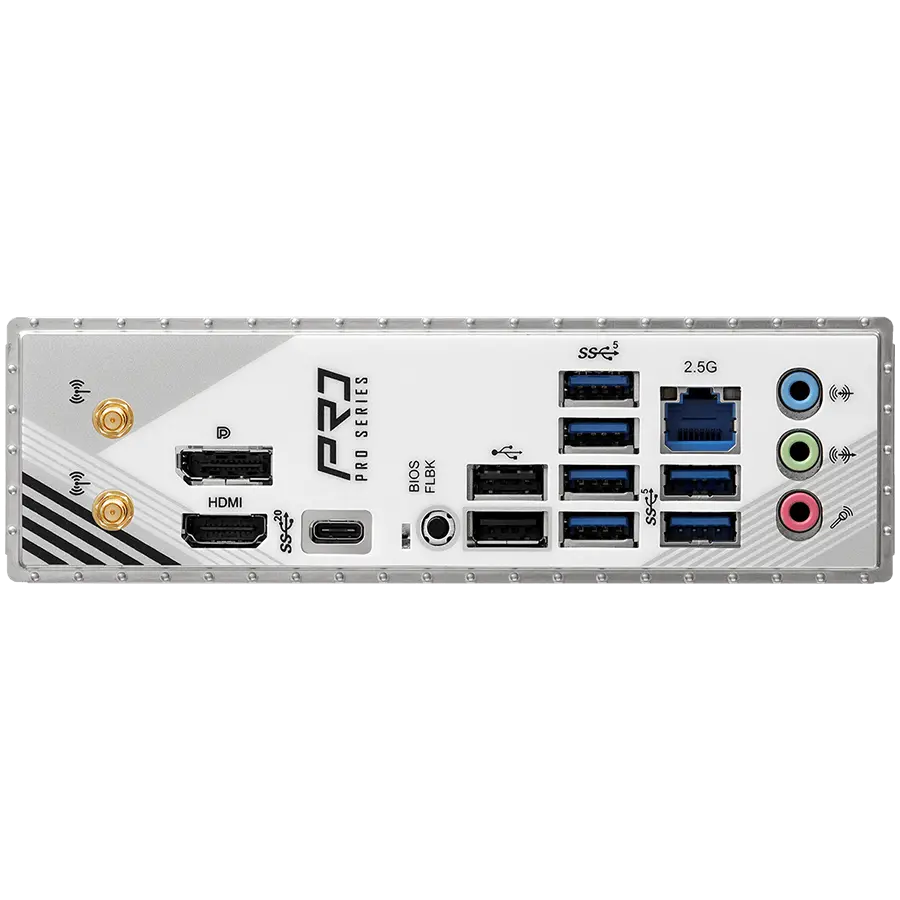

Rear panel I/O
2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
6 x USB 3.2 Gen1 Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
USB
CPU:
- 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset:
- 1 x USB 3.2 Gen1 Type-C (Front)
- 8 x USB 3.2 Gen1 (6 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
Connectors
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio
Lan
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
Wireless
802.11axe Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe
Supports Dual-Band 2x2 with extended 6GHz band* support
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.3
Supports MU-MIMO
Bluetooth
5.3
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form factor
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
OS
Microsoft Windows® 11 64-bit
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Данни, подадени от официалния вносител за България.
АтрибутСтойност
Vendor_urlhttps://asrock.com/mb/Intel/B860%20Pro%20RS%20WiFi/index.asp#Overview
ChipsetIntel® B860
OSMicrosoft Windows® 11 64-bit
OSSoftware
OS- ASRock Motherboard Utility (A-Tuning)
OSUEFI
OS- ASRock Full HD UEFI
OS- ASRock Auto Driver Installer
OS- ASRock Instant Flash
OS- ASRock Dragon 2.5G LAN Software
OS- ASRock Polychrome SYNC
OS- ASRock EZ Mode
OS- ASRock My Favorites in UEFI
Warranty36 Months
CPU's supportedSupports Intel® Hybrid Technology
CPU's supportedSupports Intel® Turbo Boost Max 3.0 Technology
CPU's supportedSupports Intel® Thermal Velocity Boost (TVB)
CPU's supportedSupports Intel® Adaptive Boost Technology (ABT)
CPU's supportedSupports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
CPU's supportedIntegrated NPU for dedicated AI acceleration
Memory typeDual Channel DDR5 Memory Technology
Memory type4 x DDR5 DIMM Slots
Memory typeMax. capacity of system memory: 256GB
Memory typeSupports Clocked Unbuffered DIMM (CUDIMM)
Memory typeSupports Intel® Extreme Memory Profile (XMP) 3.0x
Memory typeSupports DDR5 non-ECC, un-buffered memory up to 8666+(OC)
Form FactorATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Audio7.1 CH HD Audio (Realtek ALC897 Audio Codec)
AudioNahimic Audio
Rear panel I/O1 x HDMI port
Rear panel I/O1 x RJ-45 LAN Port
Rear panel I/O1 x BIOS Flashback Button
Rear panel I/OHD Audio Jacks: Line in / Front Speaker / Microphone
Rear panel I/O2 x Antenna Ports
Rear panel I/O1 x DisplayPort 1.4
Rear panel I/O1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
Rear panel I/O2 x USB 2.0 Ports
Rear panel I/O6 x USB 3.2 Gen1 Ports
LAN2.5 Gigabit LAN 10/100/1000/2500 Mb/s
LANDragon RTL8125BG
LANSmart Auto Adjust Bandwidth Control
LANVisual User Friendly UI
LANVisual Network Usage Statistics
LANOptimized Default Setting for Game, Browser, and Streaming Modes
LANUser Customized Priority Control
LANSupports Dragon 2.5G LAN Software
Expansion SlotsChipset:
Expansion SlotsCPU:
Expansion Slots- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Expansion Slots- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
Expansion Slots- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Wireless802.11axe Wi-Fi 6E Module
WirelessSupports IEEE 802.11a/b/g/n/ac/ax/axe
Wireless2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
WirelessSupports MU-MIMO
WirelessSupports Dual-Band 2x2 with extended 6GHz band* support
WirelessSupports Bluetooth 5.3
Graphics1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Graphics1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
GraphicsIntel® Xe LPG Graphics Architecture
FeaturesSuperb Productivity
Features- Dual Channel DDR5
FeaturesRock-Solid Durability
FeaturesEZ Update
Features- BIOS Flashback Button
Features- ASRock Auto Driver Installer
FeaturesEZ Troubleshooter
FeaturesUltrafast Connectivity
Features- 2.5G LAN, 802.11axe Wi-Fi 6E Module
Features- Pre-Installed I/O Shield
Features- PCIe Gen5 (Graphics, M.2)
Features- 10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT
BIOS256Mb AMI UEFI Legal BIOS with GUI support
I/O1 x HDMI Port
I/O1 x DisplayPort 1.4
I/OHD Audio Jacks: Line in / Front Speaker / Microphone
I/O2 x Antenna Ports
I/O1 x RJ-45 LAN Port
I/O1 x BIOS Flashback Button
I/O1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
I/O2 x USB 2.0 Ports
I/O6 x USB 3.2 Gen1 Ports
Storage- 4 x SATA3 6.0 Gb/s Connectors
StorageCPU:
StorageChipset:
Storage- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Storage- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
Storage- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
StorageSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Bluetooth5.3
Connectors1 x SPI TPM Header
Connectors1 x Power LED and Speaker Header
Connectors1 x 24 pin ATX Power Connector
Connectors1 x Front Panel Audio Connector
Connectors1 x RGB LED Header
Connectors3 x Addressable LED Headers
Connectors2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
Connectors1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
Connectors2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
Connectors1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Connectors1 x Front Panel Type C USB 3.2 Gen1 Header
Connectors2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
Connectors4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
USBCPU:
USB- 1 x USB 3.2 Gen1 Type-C (Front)
USB- 6 x USB 2.0 (2 Rear, 4 Front)
USB- 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset:
USB- 8 x USB 3.2 Gen1 (6 Rear, 2 Front)
Тегло1.73кг
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
АтрибутСтойност
СокетLGA1851
Форм факторATX
ЧипсетIntel B860
Тип паметDDR5
Слотове за памет (count)4
Максимална памет (GB)256
M.2 слотове (count)4
SATA портове (count)4
PCIe x16 слотове (count)2
Вграден Wi-FiWi-Fi 7
Скорост на LAN2.5 Gbps
USB-C портове (count)2
RGB подсветкаДа
Тегло1.73кг

Дънна платка ASRock B860 PRO RS WIFI

Представяме ви ASRock B860 PRO RS WIFI – дънна платка с чипсет Intel B860 за процесори LGA1851. С поддръжка на DDR5 памет, PCIe 5.0 и вграден Wi-Fi 7, този ATX модел осигурява изключителна скорост и стабилност за игри и работа.

Ключови Предимства

  • Най-нова свързаност — Вграден Wi-Fi 7 и 2.5 Gbps LAN гарантират ултраниска латентност и бърз трансфер на данни.
  • DDR5 памет — По-висока честотна лента и ефективност за най-взискателните приложения.
  • PCIe 5.0 — Готовност за най-новите видеокарти и SSD дискове.

Технически Спецификации

СпецификацияСтойност
СокетLGA1851
Форм факторATX
ЧипсетIntel B860
Тип паметDDR5
Слотове за памет4
Максимална памет256 GB
M.2 слотове4
SATA портове4
PCIe x16 слотове2
Вграден Wi-FiWi-Fi 7
Скорост на LAN2.5 Gbps
USB-C портове2
RGB подсветкаДа

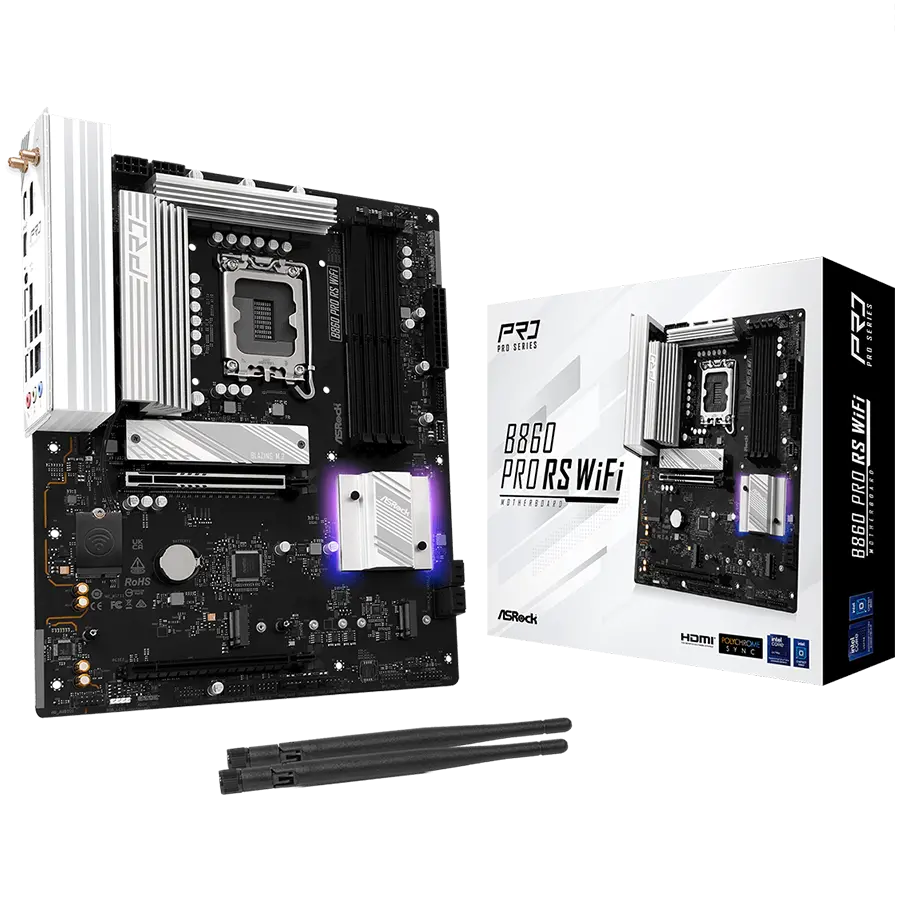

Какво има в кутията

  • Дънна платка ASRock B860 PRO RS WIFI
  • Ръководство за потребителя
  • Support DVD
  • 2 x SATA кабела
  • Wi-Fi антена
  • I/O щит
  • M.2 винтове
